Fire protection paint is a specialized coating used to help protect building materials and structural components from the effects of fire and high temperatures. Different fire protection coatings use different technologies to slow heat transfer, reduce flame spread, or create an insulating protective layer around the substrate. The right type depends on the surface material, required fire rating, exposure conditions, coating thickness, and approved coating system.
The main types of fire protection paint include intumescent fire protection paint, fire retardant paint, cementitious fireproof coatings, thin-film fire protection coatings, and thick-film fire protection systems. These coatings can be designed for applications involving structural steel, metal surfaces, wood, walls, gypsum boards, and other suitable substrates.
Choosing the correct fire protection coating is important because different materials and applications have different fire-safety requirements. A coating intended for structural steel may not be suitable for wood or gypsum board. Proper surface preparation, compatible primers and topcoats, specified coating thickness, correct application, and regular inspection are also important for achieving the intended performance.
Introduction to Types of Fire Protection Paint
Fire protection paint is a specialized coating used to help protect suitable building materials and structural components from fire and high-temperature exposure. Different coating technologies provide protection in different ways, so selecting the right system depends on the substrate, required fire performance, environmental conditions, and application requirements.
What Is Fire Protection Paint?
Fire protection paint is a coating designed to provide additional protection to a surface when exposed to fire or intense heat. Depending on its formulation, the coating may form an insulating protective layer, expand when heated, or provide other fire-protection properties.
Fire protection coatings can be designed for applications involving structural steel, metal surfaces, wood, walls, and gypsum boards. The coating should always be selected according to the intended substrate and the requirements of the specific application.

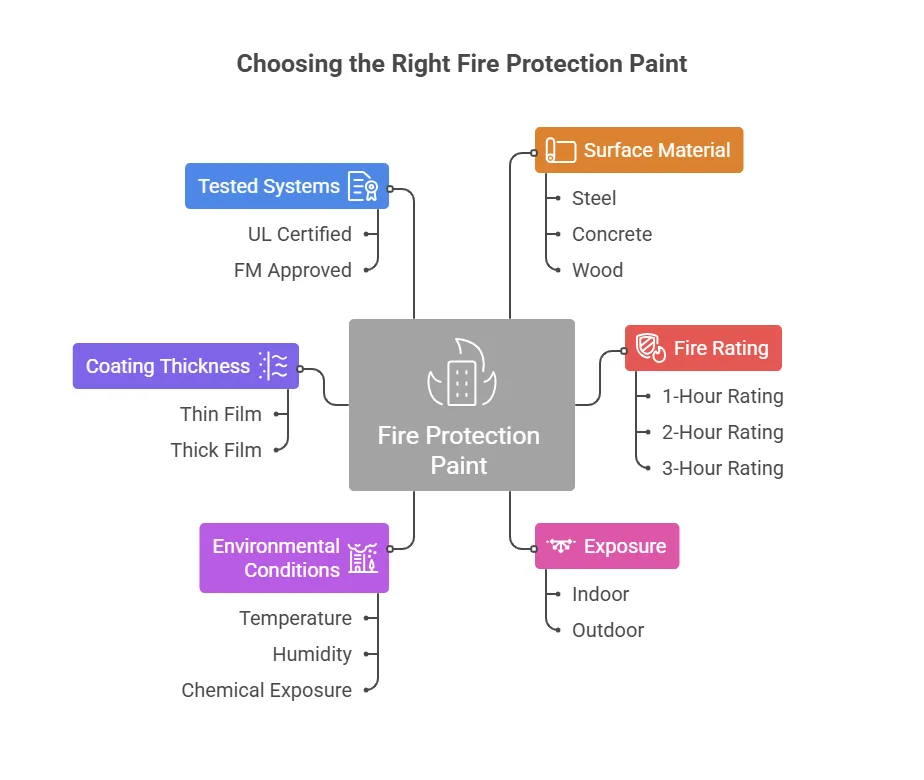

Why Are Different Types of Fire Protection Paint Used?
Different materials respond differently to fire, and fire protection projects can have different performance requirements. For this reason, there is no single fire protection coating suitable for every application.
Different coating systems may be selected based on:
- Type of substrate
- Required fire rating
- Fire exposure conditions
- Indoor or outdoor environment
- Required coating thickness
- Application method
- Primer and topcoat compatibility
- Tested or approved coating system
Understanding these differences helps ensure that the selected coating is appropriate for the intended application.
How Fire Protection Coatings Support Passive Fire Protection
Fire protection coatings are an important part of passive fire protection. They remain applied to the protected surface and can provide thermal or fire protection without requiring manual activation.
For example, an intumescent coating can react to high temperatures by expanding and forming an insulating protective layer. This helps slow heat transfer and delay the temperature rise of the underlying material.
When properly selected, applied, inspected, and maintained, fire protection coatings can work alongside fire-rated walls, fire doors, structural protection, and other fire-safety measures to support overall building and industrial fire safety.
What Are the Main Types of Fire Protection Paint?
Fire protection coatings are available in different formulations and systems to address different fire-safety requirements. The main types include intumescent fire protection paint, fire retardant paint, cementitious fireproof coatings, thin-film coatings, and thick-film fire protection systems. The appropriate type depends on the substrate, required fire rating, environmental exposure, and application requirements.
Intumescent Fire Protection Paint
Intumescent fire protection paint is designed to react when exposed to high temperatures. During a fire, the coating expands and forms an insulating char layer over the protected surface. This layer helps slow heat transfer and delay the temperature rise of the underlying material.
Intumescent coatings are commonly considered for structural steel and other approved substrates where a tested fire-protection system is required.
Fire Retardant Paint
Fire retardant paint is formulated to help reduce the spread or effects of fire on suitable surfaces. Depending on the product, it can be used on materials such as wood, fabric, metal, walls, and other approved substrates.
The specific performance and application requirements depend on the product formulation and the substrate being protected.
Cementitious Fireproof Coatings
Cementitious fireproof coatings provide protection through a relatively thick, insulating layer. The coating acts as a thermal barrier, helping slow the transfer of heat to the protected substrate during fire exposure.
These systems can be used for suitable structural and industrial applications where a thicker fireproofing layer is appropriate.
Thin-Film Fire Protection Coatings
Thin-film fire protection coatings provide fire protection using a comparatively thin coating layer. Intumescent technology is commonly associated with thin-film systems.
When exposed to heat, an intumescent thin-film coating can expand and form an insulating protective layer, helping delay the heating of the substrate.
Thick-Film Fire Protection Systems
Thick-film fire protection systems use a higher-build coating layer to provide thermal insulation. The thickness of the protective layer creates a barrier between the heat source and the underlying material.
These systems may be selected for applications requiring substantial thermal protection, depending on the tested and approved coating system.
Intumescent Fire Protection Paint
Intumescent fire protection paint is a specialized coating designed to protect suitable substrates from high temperatures during fire exposure. It is particularly important for structural steel because it can help delay the rate at which the steel heats up and loses strength.
What Is Intumescent Paint?
Intumescent paint is a fire protection coating that reacts to high temperatures by expanding and forming an insulating layer. Under normal conditions, it remains as a relatively thin coating on the substrate. During fire exposure, the coating undergoes a heat-activated reaction that produces an expanded protective layer.
It is commonly used where maintaining the fire-resistance performance of structural and building components is important.
How Intumescent Paint Works
When exposed to sufficient heat, an intumescent coating begins to activate and expand. The coating increases significantly in thickness and forms a protective char layer.
The basic process is:
Heat exposure → Activation → Expansion → Char formation → Thermal insulation → Slower substrate heating
By slowing heat transfer, the coating helps delay the temperature rise of the protected material. The actual level of protection depends on the coating formulation, specified thickness, substrate, fire exposure, and approved coating system.
Formation of the Insulating Char Layer
The expanded coating forms a carbon-rich insulating char layer over the substrate. This layer acts as a thermal barrier between the fire and the protected surface.
The char layer helps:
- Reduce heat transfer
- Slow the temperature rise of the substrate
- Delay heat-related weakening
- Protect critical structural components
- Support the required fire-resistance period
The effectiveness of the char layer depends on proper coating selection, application, and thickness control.
Applications of Intumescent Coatings
Intumescent coatings are commonly used for suitable applications involving:
- Structural steel columns
- Steel beams
- Structural steel frames
- Industrial buildings
- Warehouses and industrial sheds
- Commercial buildings
- Industrial plants and facilities
- Other approved substrates and building components
For each application, the coating system should be selected according to the required fire rating, substrate, environmental exposure, coating thickness, and relevant technical or test requirements.
Fire Retardant Paint
Fire retardant paint is a specialized coating designed to help reduce the effects of fire exposure on suitable surfaces. It can help slow flame spread and reduce heat transfer, supporting passive fire protection and providing additional time for evacuation and emergency response. The coating should be selected according to the substrate, application, and required fire-safety performance.
What Is Fire Retardant Paint?
Fire retardant paint is formulated to provide fire-protection properties when applied to suitable substrates. Depending on the coating system, it can help slow flame spread and provide a protective insulating barrier during fire exposure.
Fire retardant coatings are not intended to make a building completely fireproof. Instead, they form part of a broader fire-safety strategy and can support the protection of buildings, structural elements, and infrastructure.
How Fire Retardant Paint Works
When exposed to high temperatures, a suitable fire retardant coating can react and form a protective layer. This layer helps slow heat transfer to the underlying substrate and can reduce the rate of flame spread.
A simplified protection process is:
Fire exposure → Heat activation → Protective layer formation → Slower heat transfer → Delayed substrate heating
The actual performance depends on the coating formulation, substrate, coating thickness, application method, and specified fire-protection requirements.
Fire Retardant Paint for Different Surfaces
Fire retardant paint systems can be designed for different substrates, but the coating must be matched to the specific surface.
Common applications include:
- Steel and metal: Suitable systems can help protect structural steel, metal structures, and industrial components.
- Wood: Fire retardant coatings can be used on suitable wood surfaces and panels.
- FRC and GI sheets: Specialized systems can be used for suitable industrial roofing and cladding applications.
- Walls and gypsum boards: Specific coatings can be designed for walls, drywall, and gypsum-board applications.
The correct coating, primer, thickness, and application method should always be determined according to the product’s technical requirements.
Applications in Buildings and Industrial Facilities
Fire retardant paint can be used in a wide range of commercial, institutional, and industrial environments. Typical applications include commercial buildings, hospitals, schools, warehouses, hotels, industrial plants, structural steel, wood, walls, and gypsum boards.
In industrial facilities, fire retardant coatings can support the protection of structural elements and infrastructure. In commercial and institutional buildings, they can be used on suitable walls, gypsum boards, and other approved surfaces.
Cementitious Fireproof Coatings
Cementitious fireproof coatings are fire protection systems that use a cement-based or mineral-based protective layer to help insulate the underlying substrate from high temperatures. Unlike intumescent coatings, which expand when heated, cementitious systems generally provide protection through the thermal insulation of the applied coating layer.
What Are Cementitious Fireproof Coatings?
Cementitious fireproof coatings are relatively thick protective coatings applied to suitable building and structural components. They create an insulating barrier that helps reduce the rate at which heat reaches the protected surface during fire exposure.
These systems are commonly considered for applications where a robust, higher-build fire protection layer is required.
How Cementitious Coatings Provide Thermal Protection
The primary working principle is thermal insulation. During fire exposure, the cementitious layer acts as a barrier between the heat source and the underlying material.
The protection process can be simplified as:
Fire exposure → Insulating coating layer → Reduced heat transfer → Slower temperature rise
By slowing the heating of the substrate, the coating can help delay heat-related damage and support the required fire-resistance performance of the protected component.
Applications for Structural Steel
Cementitious fireproof coatings can be used on suitable structural steel applications where the coating system has been designed and approved for the intended fire rating.
Typical applications may include:
- Steel columns
- Steel beams
- Structural frames
- Industrial buildings
- Warehouses
- Industrial plants
- Commercial structures
The required coating thickness should be determined according to the specific fire rating, steel section, exposure conditions, and approved technical or test documentation.
Key Considerations for Cementitious Systems
Before selecting a cementitious fireproof coating, several factors should be evaluated:
- Required fire rating: Determine the protection period required for the project.
- Substrate: Confirm that the system is suitable for the structural material.
- Coating thickness: Follow the specified thickness for the required fire performance.
- Surface preparation: Ensure the substrate is properly prepared before application.
- Primer compatibility: Use a compatible primer where required.
- Environmental exposure: Consider moisture, humidity, weather, and other site conditions.
- Application method: Follow the manufacturer’s recommended application procedure.
- Inspection: Verify coating thickness and condition after application.
Thin-Film Fire Protection Coatings
Thin-film fire protection coatings are specialized systems designed to provide fire protection without requiring the heavy thickness associated with some traditional fireproofing methods. They are particularly useful where a relatively smooth finish, lower coating build, and practical application are important.
What Are Thin-Film Fire Protection Coatings?
Thin-film fire protection coatings are applied in comparatively thin layers to suitable substrates. Intumescent coatings are a common type of thin-film fire protection system.
Under normal conditions, the coating provides a protective finish. During fire exposure, an intumescent thin-film coating can react to heat, expand, and form an insulating char layer that helps protect the underlying substrate.
How Thin-Film Coatings Work
The working principle depends on the coating technology. For intumescent thin-film systems, the coating responds to high temperatures and expands to create an insulating protective layer.
The process can be summarized as:
Heat exposure → Coating activation → Expansion → Insulating char formation → Slower heat transfer
This protective layer helps delay the temperature rise of the substrate and can support the required fire-resistance performance when the coating is correctly selected and applied.
Benefits of Thin-Film Systems
Thin-film fire protection systems can offer several practical benefits:
- Lower coating build: Provides fire protection without the substantial thickness of some thick-film systems.
- Smooth appearance: Can provide a comparatively neat finish when properly applied.
- Space efficiency: Useful where maintaining the dimensions or appearance of the protected structure is important.
- Suitable for steel: Many thin-film intumescent systems are designed for structural steel applications.
- Flexible application: Depending on the product, application may be possible by brush, roller, or airless spray.
- Decorative finishing: Compatible topcoats may be used where required by the approved system.
Common Applications
Thin-film fire protection coatings are commonly used for suitable structural and building applications, including:
- Steel columns
- Steel beams
- Structural steel frames
- Commercial buildings
- Industrial buildings
- Warehouses
- Industrial plants and facilities
The coating thickness should not be selected simply because the system is described as “thin-film.” The required DFT depends on the fire rating, steel section, exposure conditions, coating system, and approved technical or test documentation.
Thick-Film Fire Protection Systems
Thick-film fire protection systems use a relatively high-build protective layer to help insulate the underlying substrate from fire and high temperatures. The greater coating build provides a thermal barrier that can slow heat transfer and delay the temperature rise of the protected material. These systems are selected according to the required fire rating, substrate, environmental conditions, and approved coating specifications.
What Are Thick-Film Fire Protection Systems?
Thick-film fire protection systems are coatings or protective systems applied at a greater thickness than thin-film systems. They are designed to provide thermal insulation during fire exposure and can be used on suitable structural and industrial components.
The system may be selected where a substantial protective layer is required to achieve the specified fire-resistance performance.
How Thick-Film Coatings Provide Insulation
The primary working principle of a thick-film system is thermal insulation. The protective layer creates a barrier between the fire and the underlying substrate, slowing the transfer of heat.
The process can be simplified as:
Fire exposure → Protective coating layer → Reduced heat transfer → Slower substrate heating
This can help delay heat-related damage and support the required fire-resistance period when the complete system is correctly designed and applied.
Applications for Steel and Industrial Structures
Thick-film fire protection systems can be suitable for various structural and industrial applications, including:
- Steel columns
- Steel beams
- Structural steel frames
- Industrial sheds
- Warehouses
- Industrial plants
- Commercial and industrial structures
For structural steel, the system should be selected according to the steel section, required fire rating, exposure conditions, and applicable technical or test documentation.
Thickness and Application Considerations
The required thickness of a thick-film fire protection system should not be assumed based only on the term “thick-film.” The appropriate DFT depends on the specific coating system and its required fire performance.
Important considerations include:
- Required fire rating
- Steel section and geometry
- Number of exposed sides
- Surface preparation
- Primer compatibility
- Environmental conditions
- Application method
- Drying and curing requirements
- Final DFT measurement and inspection
Following the manufacturer’s application instructions and approved coating system is essential for achieving the intended fire protection performance.

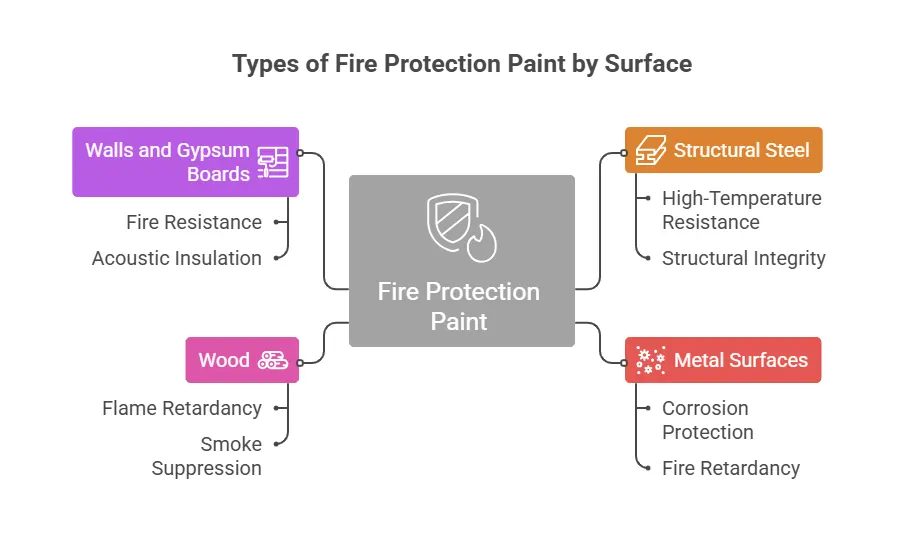

Types of Fire Protection Paint by Surface
Fire protection paint must be selected according to the surface being protected, because steel, metal, wood, walls, and gypsum boards have different characteristics and fire-protection requirements. The coating system, thickness, primer, application method, and required fire rating should be appropriate for the specific substrate.
Fire Protection Paint for Structural Steel
Structural steel is widely used in buildings, industrial facilities, warehouses, and commercial structures. During a fire, increasing temperatures can reduce the strength and stiffness of steel.
Fire protection paint helps slow the transfer of heat to steel and delay its temperature rise. Intumescent coatings can expand when exposed to high temperatures and form an insulating char layer around the steel.
Typical applications include:
- Steel columns
- Steel beams
- Structural frames
- Steel supports
- Industrial structures
The required coating thickness should be determined according to the steel section, required fire rating, exposure conditions, and approved coating system.
Fire Protection Paint for Metal Surfaces
Fire protection coatings can also be used on suitable metal surfaces where additional protection from fire or high temperatures is required.
Before application, the metal surface should be properly prepared to remove contaminants, rust, loose material, oil, and grease. A compatible primer may be required depending on the selected coating system.
The coating should be selected based on the type of metal, operating environment, required fire performance, and manufacturer’s technical requirements.
Fire Protection Paint for Wood
Wood can contribute to fire development because it is combustible. Fire retardant or fire protection coatings designed specifically for wood can help reduce flame spread and improve the fire performance of suitable wooden surfaces.
Applications may include:
- Wooden panels
- Interior wood surfaces
- Decorative wooden elements
- Suitable wooden structures
- Wood-based boards
The coating must be specifically suitable for the type and condition of the wood substrate. Application thickness and coverage should follow the product’s approved requirements.
Fire Protection Paint for Walls and Gypsum Boards
Walls and gypsum boards can be protected using coatings specifically designed for these substrates. Depending on the coating technology, the system may help reduce flame spread, slow heat transfer, or provide additional fire protection to the surface.
Suitable applications can include:
- Gypsum boards
- Drywall systems
- Interior walls
- Partitions
- Other approved wall surfaces
The correct coating should be selected according to the wall or board type, required fire performance, environmental conditions, and approved application system.
Water-Based vs Solvent-Based Fire Protection Paint
Fire protection paints can be formulated with either a water-based or solvent-based system. The choice depends on the substrate, application environment, drying conditions, required performance, and the manufacturer’s approved coating system. Neither base is automatically better for every application.
Water-Based Fire Protection Paint
Water-based fire protection paint uses water as the primary carrier for the coating formulation. These systems can be suitable for applications where lower solvent emissions and easier cleanup are important considerations.
Depending on the product formulation, water-based systems may be used for suitable structural and building surfaces. However, application conditions such as temperature, humidity, ventilation, and substrate moisture should be controlled according to the product’s technical requirements.
Solvent-Based Fire Protection Paint
Solvent-based fire protection paint uses organic solvents as the carrier for the coating formulation. These systems can be selected for applications where the formulation is designed to provide specific durability, application, or environmental performance.
During application, adequate ventilation and appropriate safety procedures are important because solvent evaporation can produce vapours. Drying and curing conditions should follow the manufacturer’s technical instructions.
Key Differences Between Water-Based and Solvent-Based Systems
| Factor | Water-Based | Solvent-Based |
| Primary carrier | Water | Organic solvent |
| Odour during application | Generally lower | Generally higher |
| Drying conditions | Sensitive to temperature and humidity | Influenced by temperature, ventilation, and solvent evaporation |
| Cleanup | Often easier with water, where specified | Generally requires the recommended solvent |
| VOC considerations | Often lower, depending on formulation | Often higher, depending on formulation |
| Application environment | Requires suitable temperature and humidity control | Requires good ventilation and appropriate safety controls |
| Selection | Based on product and project requirements | Based on product and project requirements |
The actual properties can vary considerably between products, so the manufacturer’s technical data should be reviewed before making a selection.
Choosing the Right Base for the Application
The choice between water-based and solvent-based fire protection paint should be based on the complete coating system, rather than the coating base alone.
Consider:
- Type of substrate
- Required fire rating
- Indoor or outdoor exposure
- Temperature and humidity
- Ventilation conditions
- Primer compatibility
- Topcoat requirements
- Application method
- Drying and curing conditions
- Environmental and project requirements
For structural steel and other critical applications, always use a coating system that has the appropriate tested or approved fire-performance documentation for the intended application.
How to Choose the Right Type of Fire Protection Paint
Choosing the right fire protection paint requires more than selecting a coating based on its name or fire-resistant properties. The coating should be matched to the surface material, required fire rating, exposure conditions, environmental conditions, coating thickness, and tested or approved coating system. A proper selection helps ensure that the coating is suitable for the intended application and can deliver its specified fire-protection performance.
Identify the Surface Material
Start by identifying the material that needs protection. Different substrates can require different coating technologies and application systems.
Common surfaces include:
- Structural steel
- Metal surfaces
- Wood
- Walls
- Gypsum boards
- Other approved building or industrial substrates
A coating designed for structural steel should not automatically be assumed suitable for wood, gypsum board, or another substrate. Always confirm substrate compatibility before application.
Determine the Required Fire Rating
The required fire rating is one of the most important factors when selecting a fire protection coating. Fire ratings are commonly specified according to the length of time a protected component must maintain its required performance during fire exposure.
The coating system should be capable of achieving the specified fire-resistance period under the applicable test or design conditions.
Consider Indoor or Outdoor Exposure
Determine whether the coating will be installed indoors or outdoors.
Indoor applications may have exposure to humidity, condensation, chemicals, dust, or mechanical impact.
Outdoor applications may experience rain, moisture, UV exposure, temperature changes, and weathering. In such cases, the fire protection system may require a compatible protective topcoat where specified.
Check Environmental Conditions
Environmental conditions during application and service can affect coating performance. Consider factors such as:
- Temperature
- Relative humidity
- Moisture exposure
- Ventilation
- Chemical exposure
- Weather conditions
- Substrate condition
The manufacturer’s recommended application and curing conditions should be followed to achieve the intended coating performance.
Consider Required Coating Thickness
The required coating thickness depends on the specific fire protection system and should not be selected by assumption. Dry Film Thickness (DFT) can vary according to the fire rating, substrate, steel section, coating technology, and approved technical or test data.
After application, the DFT should be measured and verified to ensure that the coating meets the specified requirements.
Review Tested and Approved Coating Systems
Before selecting a fire protection coating, review the available technical data, fire-test documentation, application instructions, and system approvals.
The complete system may include:
Substrate → Primer → Fire Protection Coating → Compatible Topcoat
Using the specified system helps ensure compatibility between coating layers and supports the intended fire-protection performance.
Factors That Affect Fire Protection Paint Selection
Selecting fire protection paint requires considering the complete application rather than the coating alone. Factors such as fire exposure, substrate, structural design, coating thickness, primer compatibility, application method, and site conditions can influence which coating system is appropriate.
Fire Exposure and Required Protection Period
The expected fire exposure and required protection period are important starting points. Projects may specify a particular fire-resistance period, such as 30, 60, 90, or 120 minutes.
The selected coating system should have suitable tested or approved performance for the required protection period and intended fire exposure. The fire rating should not be assumed solely from the product name or coating type.
Substrate and Structural Design
The substrate plays an important role in coating selection. Structural steel, metal, wood, walls, and gypsum boards may require different fire protection systems.
For steel structures, factors such as the size and geometry of the member, exposed surfaces, and structural configuration can influence the required coating system and thickness.
Coating Thickness and DFT
The required Dry Film Thickness (DFT) is closely related to the specified fire-protection performance. Different coating systems can require different thicknesses to achieve a particular fire rating.
DFT requirements should be determined from the manufacturer’s technical documentation and applicable test or design data. After application, thickness should be measured to verify compliance with the specified system.
Primer and Topcoat Compatibility
The primer, fire protection coating, and topcoat should be compatible and used as part of the recommended coating system.
An incompatible primer or topcoat can affect adhesion, durability, and overall coating performance. Before application, verify the recommended primer, fire protection layer, and topcoat combination.
Application Method and Site Conditions
The application method and conditions at the project site can also affect coating selection and performance. Depending on the product, fire protection paint may be applied by brush, roller, or airless spray.
Important site conditions include:
- Temperature
- Relative humidity
- Ventilation
- Surface condition
- Moisture exposure
- Accessibility
- Drying and curing conditions
Following the manufacturer’s application procedure helps ensure that the coating is applied correctly and achieves the intended performance.
How Are Different Fire Protection Paints Applied?
Different fire protection paints may require different application procedures depending on the coating technology, substrate, required fire rating, and product specifications. However, a typical application process includes surface preparation, primer application, fire protection coating application, thickness control, drying, curing, and final inspection.
Surface Preparation
Proper surface preparation is the first step in a fire protection coating system. The substrate should be clean, dry, and free from dust, oil, grease, rust, loose material, and other contaminants.
For steel and metal surfaces, the required preparation method should follow the coating manufacturer’s specifications. Good surface preparation helps provide proper adhesion and supports the durability of the complete coating system.
Primer Application
A compatible primer may be required before applying the fire protection coating. The primer helps prepare the substrate and can provide additional protection depending on the coating system.
The primer should be compatible with the fire protection coating and applied at the specified thickness. Allow the primer to dry or cure according to the recommended application procedure before applying the next layer.
Brush, Roller, or Airless Spray Application
Fire protection paints can be applied using different methods depending on the product and project requirements.
- Brush application: Useful for small areas, edges, corners, touch-ups, and difficult-to-access locations.
- Roller application: Can be suitable for certain products and accessible surfaces where an even coating can be achieved.
- Airless spray application: Commonly used for larger areas and can provide efficient and uniform application when the equipment and product are suitable.
The recommended application method should always be followed according to the product’s technical requirements.
Coating Thickness Control
Coating thickness is critical to fire protection performance. The required Dry Film Thickness (DFT) should be established according to the specified fire rating and approved coating system.
During application, ensure that the coating is applied uniformly and that the required thickness is achieved without excessive build-up or insufficient coverage.
DFT should be measured after drying or curing to verify that the applied coating meets the specified requirements.
Drying, Curing, and Final Inspection
Each coat should be allowed to dry or cure under the recommended environmental conditions before applying subsequent coats or topcoats.
Temperature, humidity, ventilation, and coating thickness can affect drying and curing.
After the coating system has been completed, a final inspection should verify:
- Required DFT
- Uniform coating coverage
- Surface condition
- Cracks, peeling, or visible defects
- Proper drying and curing
- Overall coating integrity
Any areas that do not meet the specified requirements should be repaired using the recommended coating system and procedure.
Common Mistakes When Selecting Fire Protection Paint
Selecting the right fire protection paint is important for achieving the intended fire-safety performance. A coating should not be selected only by its name or general fire-resistant properties. The substrate, required fire rating, coating thickness, compatible coating system, and environmental conditions should all be considered before application.
Choosing the Wrong Coating for the Substrate
Different substrates require different fire protection coating systems. A coating designed for structural steel may not be suitable for wood, gypsum boards, or other surfaces.
Before selection, identify the substrate and confirm that the fire protection coating is specifically suitable for the intended surface.
Ignoring the Required Fire Rating
Every project may have a specific fire-resistance requirement. Selecting a coating without considering the required protection period can result in an unsuitable system.
The coating should be selected according to the required fire rating and applicable tested or approved performance data.
Applying Incorrect Coating Thickness
Coating thickness directly affects the performance of many fire protection systems. Applying less than the specified thickness may result in inadequate protection, while uncontrolled excessive application can create application and curing issues.
The required Dry Film Thickness (DFT) should be established from the approved coating system and verified after application.
Using an Incompatible Primer or Topcoat
The primer, fire protection coating, and topcoat should be compatible with one another. An incompatible layer can affect adhesion, durability, and the performance of the complete system.
Always verify the recommended coating sequence and use compatible products specified for the system.
Ignoring Environmental Conditions
Environmental conditions can affect both application and long-term coating performance. Factors such as temperature, humidity, moisture, UV exposure, chemicals, and weather conditions should be considered.
For outdoor applications, the selected system may require a compatible protective topcoat to improve resistance to environmental exposure.
Frequently Asked Questions About Types of Fire Protection Paint
What Are the Different Types of Fire Protection Paint?
The main types of fire protection coatings include intumescent fire protection paint, fire retardant paint, cementitious fireproof coatings, thin-film coatings, and thick-film fire protection systems. Each type uses a different protection mechanism and is selected according to the substrate, required fire rating, application environment, and project requirements.
Which Type of Fire Protection Paint Is Best for Steel?
There is no single coating that is best for every steel application. Intumescent coatings are commonly used for structural steel because they can expand during fire exposure and form an insulating char layer.
The appropriate system depends on the required fire rating, steel section, exposure conditions, coating thickness, and tested or approved system.
What Is Intumescent Fire Protection Paint?
Intumescent fire protection paint is a heat-reactive coating that expands when exposed to high temperatures. It forms an insulating char layer that helps slow heat transfer and delays the temperature rise of the protected substrate.
What Is the Difference Between Fire Protection Paint and Fire Retardant Paint?
Fire protection paint is a broad term for coatings designed to provide protection against fire or high temperatures. Fire retardant paint generally focuses on reducing flame spread and the effects of fire on suitable surfaces.
The exact performance depends on the formulation, substrate, coating thickness, and applicable test requirements.
What Are Cementitious Fireproof Coatings?
Cementitious fireproof coatings are mineral or cement-based protective systems that provide thermal insulation through a relatively thick coating layer. They help slow heat transfer to the protected substrate and can be used for suitable structural and industrial applications.
What Is the Difference Between Thin-Film and Thick-Film Coatings?
Thin-film coatings provide fire protection using a comparatively thinner coating layer, with intumescent systems commonly included in this category.
Thick-film systems use a higher-build protective layer to provide thermal insulation.
The required thickness should always be determined from the specific coating system and its approved fire-performance requirements.
Can Fire Protection Paint Be Used Outdoors?
Yes, fire protection paint can be used outdoors when the selected coating system is specifically suitable for outdoor exposure. Outdoor systems may need protection against rain, moisture, UV radiation, temperature changes, and weathering.
A compatible topcoat may be required depending on the system and environmental conditions.
How Thick Should Fire Protection Paint Be?
There is no universal coating thickness. Required Dry Film Thickness (DFT) depends on factors such as the required fire rating, substrate, steel section, coating technology, fire exposure, and approved technical or test documentation.
The specified DFT should be followed and verified after application.
How Do I Choose the Right Fire Protection Coating?
Choose the coating by considering:
- Identify the substrate – steel, metal, wood, walls, or gypsum board.
- Determine the required fire rating – establish the required protection period.
- Consider the environment – indoor, outdoor, moisture, chemicals, UV, and weather exposure.
- Determine the required DFT – follow the approved coating system.
- Check compatibility – verify primer and topcoat compatibility.
- Review technical documentation – confirm tested or approved fire-performance data.
Conclusion – Choosing the Right Type of Fire Protection Paint
Choosing the right type of fire protection paint is an important part of developing an effective fire-safety strategy. Different coating systems are designed for different substrates, fire ratings, environments, and application requirements. The coating should therefore be selected and applied according to the complete system rather than based only on general fire-resistant properties.
Match the Coating to the Application
Start by identifying the substrate and application environment. Structural steel, metal, wood, walls, and gypsum boards may require different fire protection technologies.
The selected coating should be suitable for the specific surface, intended use, and environmental exposure.
Select the Required Fire Rating
The required fire rating is a key factor when selecting a fire protection coating. Determine the protection period required for the project and select a coating system capable of meeting the specified fire-performance requirements.
Coating thickness should be established according to the applicable technical or test documentation rather than by assumption.
Follow the Approved Coating System
Fire protection performance depends on the complete coating system, including surface preparation, primer, fire protection layer, coating thickness, and compatible topcoat where required.
Following the manufacturer’s application instructions and approved system requirements helps maintain the intended performance of the coating.
Support Long-Term Fire Protection Performance
Long-term performance requires more than correct initial application. Regular inspection can help identify cracks, peeling, impact damage, corrosion, or coating loss.
Damaged areas should be repaired using the appropriate compatible system and recommended procedure. Proper inspection and maintenance help preserve the condition of the fire protection coating over its service life.
