Fire protection paint for steel is a specialized coating system used to help protect structural steel from the effects of high temperatures during a fire. Although steel does not burn, intense heat can reduce its strength and stiffness, potentially affecting the stability of load-bearing members.
A properly selected and applied fire protection coating helps slow heat transfer to the steel, delay temperature-related weakening, and support structural fire resistance. It is commonly used on steel columns, beams, frames, warehouses, industrial buildings, commercial structures, and manufacturing facilities.
Introduction to Fire Protection Paint for Steel
Fire protection paint for steel is used to help protect structural steel from the effects of high temperatures during fire exposure. Steel is widely used in industrial buildings, warehouses, commercial facilities, and structural frameworks, but intense heat can affect its strength and structural performance. A suitable fire protection coating helps slow heat transfer and delay heat-related damage.
What Is Fire Protection Paint for Steel?
Fire protection paint for steel is a specialized coating applied to structural steel members such as columns, beams, frames, and supports. Depending on the coating system, it can form an insulating protective layer when exposed to high temperatures.
Its primary purpose is to help delay the temperature rise of steel and support the required structural fire resistance.
Key functions include:
- Slowing heat transfer to steel
- Delaying heat-related weakening
- Protecting critical structural members
- Supporting passive fire protection
- Improving structural fire safety
Why Does Steel Need Fire Protection?
Steel does not burn, but its strength and stiffness can be affected by high temperatures. During a fire, unprotected steel can heat rapidly, which may reduce its ability to safely support structural loads.
Fire protection paint provides a protective barrier that helps slow the heating process and delay the effects of high temperatures.
Steel members commonly protected include:
- Steel columns
- Steel beams
- Structural frames
- Roof-support structures
- Industrial platforms
- Steel supports
How Fire Protection Paint Improves Steel Safety
Fire protection paint helps reduce the rate of heat transfer from a fire to the steel. Intumescent systems can expand under high temperatures and form an insulating protective layer around the steel.
This protection can help:
- Slow the temperature rise of steel
- Delay structural weakening
- Support load-bearing performance
- Protect important steel components
- Provide additional time for evacuation and emergency response
How Does Fire Protection Paint Work on Steel?
Fire protection paint works by creating a protective barrier between structural steel and the high temperatures generated during a fire. Depending on the coating technology, the system can form an insulating layer that slows heat transfer and helps delay the temperature rise of the steel.
Effect of High Temperatures on Steel
Structural steel can lose strength and stiffness as its temperature increases. During a fire, unprotected steel can heat rapidly, which may affect its load-bearing performance and structural stability.
Fire protection paint helps slow this heating process and provides additional thermal protection to critical steel members.
Key effects of high heat include:
- Reduced steel strength
- Reduced stiffness
- Increased risk of deformation
- Potential loss of structural stability

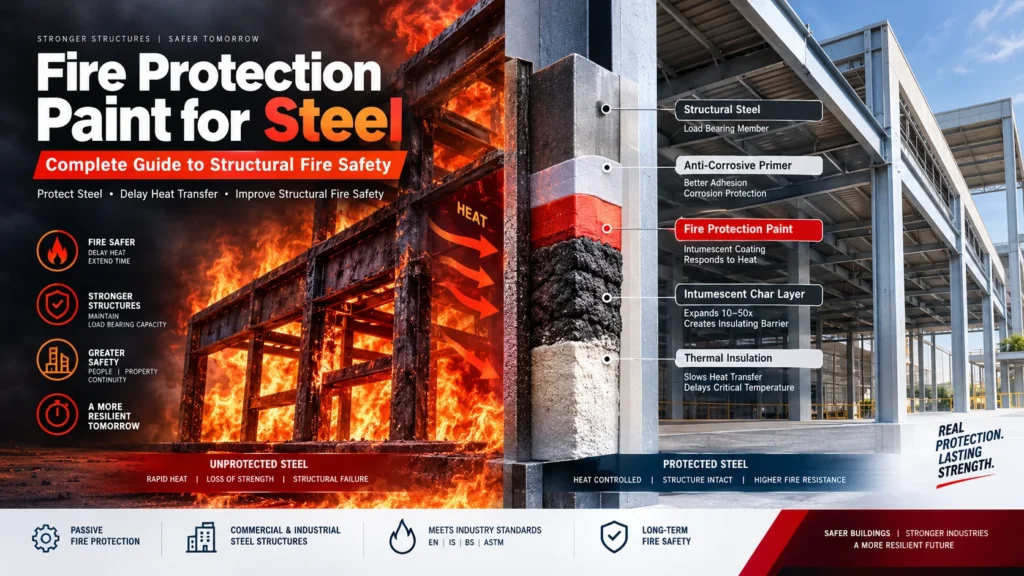

Formation of an Insulating Protective Layer
Some fire protection coatings form an insulating layer when exposed to high temperatures. This layer acts as a thermal barrier between the fire and the steel surface.
The protective layer helps:
- Reduce heat transfer
- Slow the heating of steel
- Delay temperature-related weakening
- Support the required fire-resistance performance
How Intumescent Paint Reacts to Heat
Intumescent paint is designed to react when exposed to high temperatures. As the coating is heated, it expands and forms a thick, insulating char layer over the steel.
The basic process is:
Heat exposure → Coating activation → Expansion → Protective char formation → Reduced heat transfer
The effectiveness of the protection depends on the complete coating system, specified thickness, steel characteristics, and required fire rating.
Slowing the Temperature Rise of Steel
The main objective of fire protection paint is to slow the rate at which the steel temperature increases during fire exposure. By delaying heating, the coating can help maintain the structural performance of steel for the specified protection period.

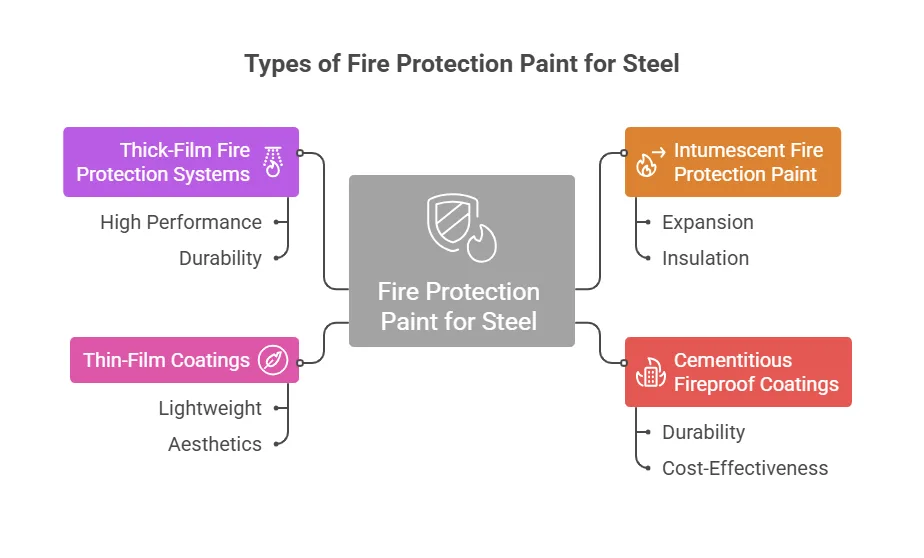

Types of Fire Protection Paint for Steel
Different fire protection coating systems are available for structural steel. The appropriate type depends on the required fire rating, steel structure, application environment, coating thickness, and approved coating system.
Intumescent Fire Protection Paint
Intumescent fire protection paint reacts to high temperatures by expanding and forming an insulating protective char layer around the steel. This layer helps slow heat transfer and delay the temperature rise of the steel.
Key features:
- Expands when exposed to high heat
- Forms an insulating protective layer
- Helps slow heat transfer
- Can provide a relatively thin fire protection system
- Suitable for various structural steel applications
Cementitious Fireproof Coatings
Cementitious fireproof coatings provide fire protection through a thicker insulating layer around the steel. They can be used for selected structural and industrial applications where a high-build protective system is suitable.
Key features:
- Provides a thick insulating barrier
- Suitable for selected structural steel applications
- Can provide substantial thermal protection
- Requires appropriate surface preparation and application
Thin-Film Coatings
Thin-film fire protection coatings provide fire resistance while maintaining a relatively low coating thickness. They can be useful where a smoother appearance and limited coating build are preferred.
Key features:
- Relatively low coating thickness
- Suitable for exposed structural steel
- Can provide a smooth finished appearance
- Requires controlled application and DFT verification
Thick-Film Fire Protection Systems
Thick-film fire protection systems use a higher-build insulating layer to protect structural steel from high temperatures. They may be selected for applications requiring substantial thermal protection.
Key features:
- Higher coating build
- Provides an insulating thermal barrier
- Suitable for selected industrial and structural applications
- Requires careful thickness control and inspection

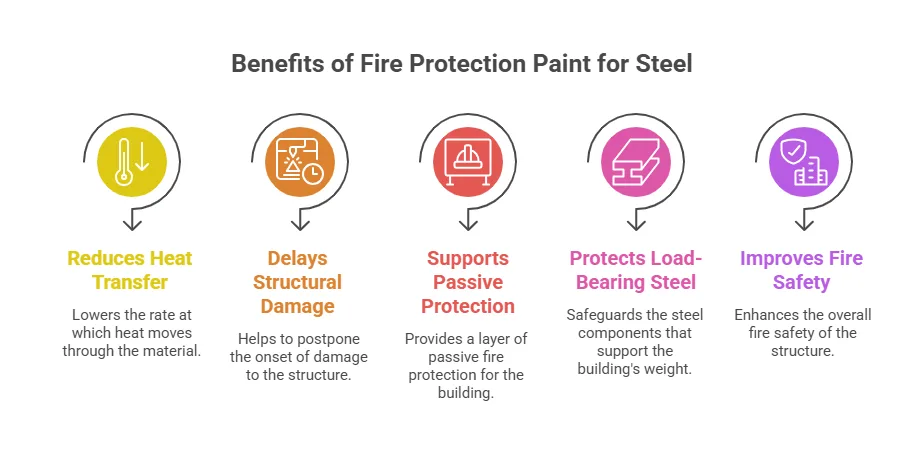

Benefits of Fire Protection Paint for Steel
Fire protection paint provides an additional layer of thermal protection for structural steel. When correctly selected and applied as part of an approved coating system, it can help slow heat transfer, delay structural weakening, and support passive fire protection.
Reduces Heat Transfer
Fire protection paint creates a thermal barrier between the fire and the steel surface. This helps reduce the rate at which heat reaches the structural member.
Key benefits:
- Slows heat transfer
- Delays the temperature rise of steel
- Provides thermal insulation
- Supports the required fire-resistance performance
Helps Delay Structural Damage
High temperatures can affect the strength and stiffness of steel. Fire protection coatings help slow the heating process, which can delay heat-related weakening and deformation.
This can help protect critical structural members during fire exposure.
Supports Passive Fire Protection
Fire protection paint is an important component of passive fire protection. Once properly applied, the coating provides protection without requiring manual activation or an external power source.
It can work alongside other passive fire protection measures such as:
- Fire-rated walls
- Fire doors
- Protected structural members
- Fire-resistant barriers
Protects Load-Bearing Steel
Steel columns and beams are often essential to a building’s structural stability. Applying a suitable fire protection coating helps reduce their exposure to rapid temperature increase.
Common protected members include:
- Steel columns
- Steel beams
- Structural frames
- Roof-support structures
- Steel platforms
Improves Structural Fire Safety
By slowing the temperature rise of steel and delaying heat-related structural damage, fire protection paint can contribute to overall structural fire safety.
It can help provide additional time for evacuation, emergency response, and fire-control operations, depending on the complete building fire-safety design.

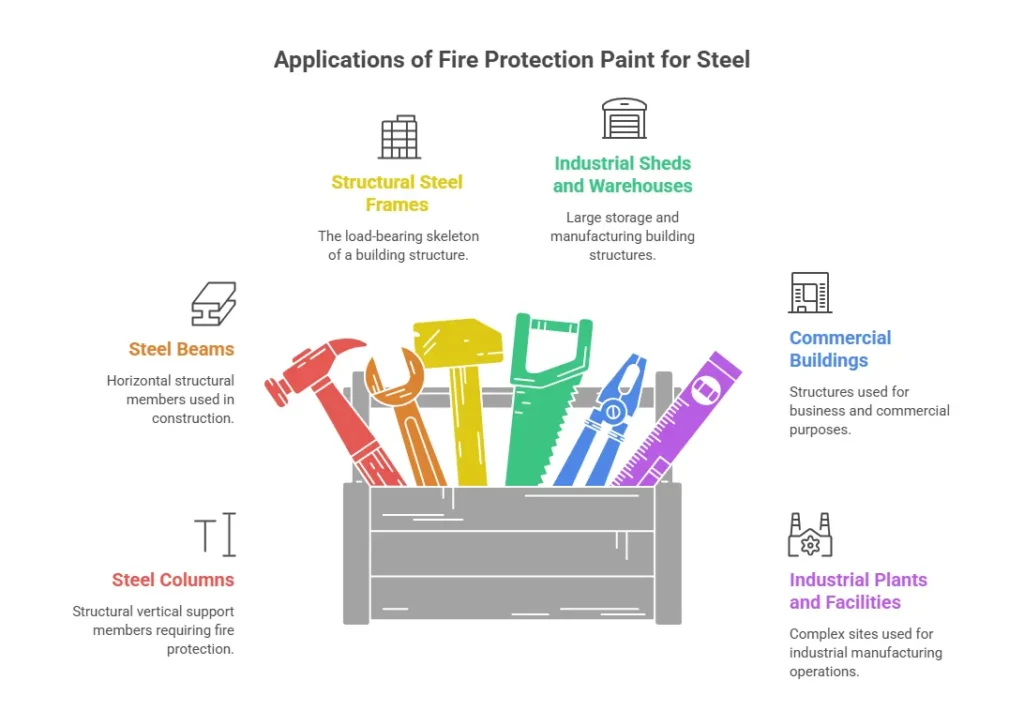

Applications of Fire Protection Paint for Steel
Fire protection paint can be applied to different structural steel components and facilities to help reduce the effects of high temperatures during a fire. The coating system should be selected according to the steel structure, required fire rating, environmental conditions, and approved application requirements.
Steel Columns
Steel columns are critical load-bearing members that support the weight of a building or industrial structure. Fire protection paint helps slow the temperature rise of these members and can delay heat-related loss of strength.
Common applications include:
- Structural columns
- Industrial building columns
- Warehouse support columns
- Building framework columns
Steel Beams
Steel beams support floors, roofs, platforms, and other structural components. Applying a suitable fire protection coating helps reduce their exposure to rapid heating during a fire.
Key benefits include:
- Slower heat transfer
- Delayed temperature rise
- Support for structural fire resistance
- Protection of critical load-bearing members
Structural Steel Frames
Structural steel frames consist of interconnected columns, beams, bracing, and other steel members. Fire protection coatings can be applied to selected or required members according to the project’s fire-safety design.
The coating system should provide the required level of protection while remaining compatible with the structural steel and surrounding coating system.
Industrial Sheds and Warehouses
Industrial sheds and warehouses often use extensive steel frameworks for their roofs, walls, columns, and support structures. Fire protection paint can help protect these structural members from rapid heating.
Typical applications include:
- Steel roof structures
- Columns and beams
- Structural frames
- Support members
- Steel platforms
Commercial Buildings
Commercial buildings may contain exposed structural steel in their framework, atriums, roof structures, and other areas. Fire protection coatings can be used where structural fire protection is required by the building design or project specifications.
The selected coating should be suitable for the building environment and required fire-resistance period.
Industrial Plants and Facilities
Industrial plants may contain extensive structural steel, equipment supports, platforms, and other critical infrastructure. Fire protection paint can form part of the facility’s passive fire protection strategy.
Common applications include:
- Manufacturing facilities
- Processing plants
- Steel platforms
- Equipment support structures
- Industrial frameworks
How to Choose Fire Protection Paint for Steel
Choosing the right fire protection paint for steel requires consideration of the steel structure, required fire rating, exposure conditions, tested coating system, and compatibility of the complete coating system. The coating should be selected according to the specific project requirements rather than using the same system for every application.
Identify the Steel Structure
First, identify the type and purpose of the steel that requires protection.
Consider:
- Steel columns
- Steel beams
- Structural frames
- Roof structures
- Steel supports
- Industrial platforms
The geometry and exposure of the steel member can influence the required fire protection system and coating thickness.
Determine the Required Fire Rating
The required fire rating should be established from the project’s fire-safety design, applicable requirements, and specifications.
Fire ratings are commonly expressed in minutes or hours, such as 30, 60, 90, or 120 minutes.
Important: The coating system and thickness should be capable of achieving the specified fire-resistance period according to relevant test or design documentation.
Consider Indoor or Outdoor Exposure
Determine where the steel structure is located.
Indoor applications may involve:
- Humidity
- Condensation
- Mechanical impact
- Normal building exposure
Outdoor applications may involve:
- Rain
- Moisture
- UV exposure
- Temperature fluctuations
- Weathering
Outdoor steel may require additional protective measures, such as a compatible topcoat.
Check Environmental Conditions
Environmental conditions can affect coating durability and long-term performance.
Before selecting the coating, consider:
- Temperature
- Humidity
- Moisture exposure
- Chemical exposure
- UV radiation
- Industrial atmosphere
- Mechanical or impact exposure
Selecting a system suitable for the actual service environment helps maintain coating performance.
Review Tested Coating Systems
Fire protection performance should be based on the complete tested or approved coating system, rather than the product name alone.
Review relevant documentation such as:
- Technical Data Sheet (TDS)
- Fire-test documentation
- Application instructions
- Required DFT
- Approved primer
- Compatible topcoat
- Application limitations
This helps ensure that the selected system is suitable for the required fire rating and steel application.
Select Compatible Primer and Topcoat
The primer, fire protection coating, and topcoat should be compatible with one another. An unsuitable primer or topcoat may affect adhesion, durability, and the performance of the overall system.
Check:
- Primer compatibility
- Fire protection coating compatibility
- Topcoat compatibility
- Required drying and curing conditions
- Recommended application sequence
Understanding Fire Rating and Coating Thickness
Fire rating and coating thickness are important factors when selecting and applying fire protection paint for steel. The required coating thickness depends on the specified fire-resistance period and the characteristics of the steel structure. Correct thickness control helps ensure that the coating system is applied according to its intended fire-protection requirements.
What Is Dry Film Thickness (DFT)?
Dry Film Thickness (DFT) is the thickness of the fire protection coating after it has dried or cured. It is commonly measured in microns (µm) or millimetres (mm).
DFT is different from wet film thickness because the coating may lose some thickness as solvents or water evaporate during drying.
Why Is DFT Important?
DFT is important because the specified coating thickness is directly related to the performance of the approved fire protection system.
Maintaining the required DFT helps:
- Provide the intended level of thermal protection
- Achieve the specified fire-resistance period
- Maintain consistent coating performance
- Reduce the risk of under-application
- Support quality control during installation
Important: Applying more or less coating than specified should not be assumed to improve fire protection. The approved coating system and its specified thickness should always be followed.
Factors Affecting Required Coating Thickness
The required coating thickness is not the same for every steel structure. It can depend on several factors, including:
- Required fire rating – The specified protection period affects the coating requirement.
- Steel member type – Columns, beams, and other structural members may have different requirements.
- Steel section characteristics – Section size and geometry affect how quickly the steel heats.
- Number of exposed sides – The amount of steel exposed to fire can influence the protection requirement.
- Coating system – Different fire protection technologies have different thickness requirements.
- Environmental conditions – Indoor and outdoor exposure may require different coating systems.
- Approved test or design data – The required thickness should follow the applicable technical documentation.
Measuring and Verifying DFT
DFT should be checked after the coating has dried or cured using an appropriate coating-thickness measurement method.
A proper inspection process should include:
- Confirm the specified DFT before application.
- Apply the coating according to the approved procedure.
- Allow the coating to dry or cure as required.
- Measure the dry film thickness at suitable locations.
- Compare measurements with the specified requirements.
- Repair or correct areas that do not meet the required specification.
How Is Fire Protection Paint Applied to Steel?
Proper application of fire protection paint is essential for achieving the intended fire-resistance performance of structural steel. The process generally involves surface preparation, primer application, controlled coating application, thickness measurement, drying, curing, and final inspection.
Steel Surface Preparation
Proper surface preparation helps ensure good adhesion between the steel and the coating system.
Before application:
- Remove dust, dirt, oil, grease, and other contaminants.
- Remove loose rust and unsuitable existing coatings.
- Ensure the steel surface is clean and dry.
- Follow the surface-preparation requirements specified for the coating system.
- Check the surface condition before applying primer.
Primer Application
A compatible primer may be applied to the prepared steel before the fire protection coating. The primer can provide adhesion and corrosion protection where required by the approved coating system.
Important considerations:
- Use only a compatible primer.
- Follow the specified primer thickness.
- Allow the primer to dry or cure as required.
- Confirm compatibility before applying the fire protection coating.
Brush, Roller, and Airless Spray Application
Fire protection paint can be applied using different methods depending on the product, project size, accessibility, and application requirements.
Brush Application: Suitable for smaller areas, edges, corners, touch-ups, and difficult-to-access sections.
Roller Application: Can be used on suitable accessible and relatively smooth surfaces.
Airless Spray Application: Often suitable for larger structural steel projects where controlled and uniform application is required.
The application method should always follow the product’s technical instructions.
Applying the Required Coating Thickness
The fire protection coating should be applied according to the specified Dry Film Thickness (DFT). Multiple coats may be required to achieve the required thickness.
During application:
- Follow the specified coat thickness.
- Maintain uniform coverage.
- Allow each coat to dry as required.
- Avoid excessive or insufficient application.
- Measure DFT after drying or curing.
- Correct areas that do not meet the specified requirements.
Important: Required thickness varies according to the fire rating, steel section, coating system, and approved technical or test documentation.
Drying, Curing, and Final Inspection
Each coating layer should be allowed to dry or cure according to the manufacturer’s specified conditions before applying subsequent coats or topcoats.
Final inspection should verify:
- Overall coating coverage
- Dry Film Thickness
- Surface defects
- Adhesion or visible coating condition where required
- Proper drying and curing
- Compatibility of the complete coating system
Fire Protection Paint for Indoor and Outdoor Steel
Fire protection paint can be used on both indoor and outdoor steel structures, but the coating system should be selected according to the exposure environment, required fire rating, moisture conditions, and compatibility of the complete coating system.
Indoor Steel Structures
Indoor structural steel is generally protected from direct rain and sunlight, but it can still be exposed to humidity, condensation, temperature changes, dust, chemicals, and mechanical impact.
Suitable fire protection systems can be used on:
- Steel columns
- Steel beams
- Structural frames
- Roof supports
- Industrial platforms
- Commercial building structures
The selected coating should match the indoor environment and required fire-resistance performance.
Outdoor Steel Structures
Outdoor steel requires additional consideration because it is exposed to changing weather conditions. Rain, humidity, UV radiation, temperature fluctuations, and atmospheric pollutants can affect coating durability.
Outdoor applications may require a complete system consisting of:
Surface preparation → Compatible primer → Fire protection coating → Suitable protective topcoat
The selected system should be specifically suitable for the intended outdoor exposure.
Moisture and Weather Protection
Moisture can contribute to corrosion and coating deterioration if the steel and coating system are not properly protected.
For outdoor steel, consider:
- Moisture resistance
- Rain exposure
- Humidity
- UV exposure
- Temperature variation
- Atmospheric pollution
- Corrosion protection
Proper surface preparation and a suitable protective coating system can help maintain long-term performance.
Importance of Compatible Topcoats
A compatible topcoat can provide additional protection to the fire protection coating against moisture, UV radiation, weathering, and mechanical wear.
However, not every topcoat is suitable for every fire protection system. The topcoat should be compatible with the primer and fire protection coating and should be approved as part of the coating system.
Inspection and Maintenance
Regular inspection and maintenance are important for keeping fire protection coatings on steel in good condition. Damage, cracking, peeling, or coating loss can reduce the effectiveness of the protective system and should be identified and addressed promptly.
Regular Visual Inspection
Regularly inspect coated steel surfaces to identify visible changes or damage.
Check for:
- Surface cracking
- Peeling or flaking
- Blistering
- Impact damage
- Discoloration
- Exposed steel
- Signs of corrosion
The inspection frequency should reflect the coating system, environmental exposure, and site conditions.
Checking for Cracks and Coating Loss
Cracks, peeling, impact damage, and missing coating areas should be carefully examined. Particular attention should be given to areas exposed to moisture, mechanical impact, maintenance activities, or harsh environmental conditions.
Where required, coating thickness can also be checked to confirm that the remaining system meets the specified requirements.
Repairing Damaged Areas
Damaged areas should be repaired using materials and procedures compatible with the existing fire protection system.
A typical repair process may include:
- Identify and assess the damaged area.
- Remove loose or defective coating.
- Prepare the exposed steel appropriately.
- Reapply compatible primer where required.
- Apply the approved fire protection coating.
- Restore the specified coating thickness.
- Inspect the repaired area after drying or curing.
Maintaining Long-Term Fire Protection
Long-term performance depends on proper inspection, timely repairs, suitable environmental protection, and following the coating manufacturer’s maintenance requirements.
Regular maintenance helps:
- Preserve coating integrity
- Identify damage early
- Reduce corrosion risk
- Maintain specified coating thickness
- Support long-term fire protection performance
Common Mistakes to Avoid
Avoiding common application and maintenance mistakes is important for maintaining the intended performance of fire protection paint on structural steel. The complete coating system should be selected, applied, inspected, and maintained according to its technical requirements.
Using the Wrong Coating System
Selecting a coating without considering the steel structure, required fire rating, exposure conditions, and approved system can lead to unsuitable protection.
Before selection, verify the coating’s intended application and relevant technical documentation.
Ignoring Required Coating Thickness
Applying too little or an uncontrolled coating thickness can affect the intended fire-protection performance.
The specified Dry Film Thickness (DFT) should be followed and measured after application. Required thickness depends on the coating system, steel section, fire rating, and approved technical or test data.
Poor Surface Preparation
Poor surface preparation can result in weak adhesion, peeling, corrosion, and premature coating deterioration.
Before application, ensure the steel surface is properly prepared according to the coating system’s requirements.
Using an Incompatible Primer
An incompatible primer can affect adhesion and the performance of the complete fire protection system.
Always check that the primer is approved or compatible with the selected fire protection coating before application.
Skipping Inspection and Maintenance
Failing to inspect the coating can allow cracks, peeling, impact damage, corrosion, or coating loss to remain unnoticed.
Regular inspection helps identify problems early, while timely repairs can help maintain the condition and long-term performance of the fire protection system.
Frequently Asked Questions
Why Does Steel Need Fire Protection Paint?
Steel does not burn, but high temperatures can reduce its strength and stiffness. Fire protection paint helps slow the temperature rise of structural steel and delay heat-related weakening during fire exposure.
How Does Fire Protection Paint Work on Steel?
Fire protection paint creates a thermal barrier between the fire and the steel. Depending on the coating system, it can form an insulating layer that slows heat transfer and delays the heating of the steel.
What Is Intumescent Paint for Steel?
Intumescent paint is a type of fire protection coating that expands when exposed to high temperatures. It forms an insulating protective layer around the steel, helping slow heat transfer during a fire.
What Fire Rating Is Required for Steel?
The required fire rating depends on the building design, structural requirements, occupancy, applicable regulations, and project specifications. Ratings may be specified in minutes or hours, such as 30, 60, 90, or 120 minutes.
The required rating should always be confirmed from the project’s fire-safety requirements and approved coating system.
How Thick Should Fire Protection Paint Be?
There is no single thickness suitable for every steel structure. Required Dry Film Thickness (DFT) depends on factors such as:
- Required fire rating
- Steel section and geometry
- Type of structural member
- Number of exposed sides
- Coating technology
- Approved test or design data
The specified DFT should be followed and verified during inspection.
Can Fire Protection Paint Be Used Outdoors?
Yes, provided the selected coating system is suitable for outdoor exposure. Outdoor steel may require additional protection against moisture, UV radiation, rain, weathering, and corrosion.
A compatible primer and protective topcoat may be required as part of the approved system.
How Long Does Fire Protection Paint Last?
The service life depends on the coating system, surface preparation, application quality, environmental exposure, mechanical damage, and maintenance.
Regular inspection can help identify cracking, peeling, coating loss, corrosion, and other damage so that repairs can be carried out when required.
Can It Be Applied to Existing Steel?
Yes, fire protection paint can be applied to existing steel when the substrate is suitable and properly prepared. The existing coating condition should be assessed, contaminants and loose materials removed, and a compatible coating system selected.
Conclusion – Choosing the Right Fire Protection Paint for Steel
Choosing the right fire protection paint for steel is an important part of structural fire safety. A suitable coating system can help slow heat transfer, delay heat-related weakening, and protect critical steel members during fire exposure.
Match the Coating to the Steel Structure
The coating should be selected according to the type of steel structure, such as columns, beams, structural frames, industrial sheds, warehouses, or industrial facilities. The exposure environment and condition of the steel should also be considered.
Select the Required Fire Rating
The required fire rating should be determined according to the project’s fire-safety requirements and specifications. The coating thickness should then be selected based on the approved coating system and relevant technical or test documentation.
Follow the Approved Application System
Proper surface preparation, compatible primer selection, correct application method, specified DFT, drying, curing, and final inspection are essential for achieving the intended coating performance.
Improve Long-Term Structural Fire Safety
Regular inspection and maintenance help identify cracks, peeling, coating loss, corrosion, and mechanical damage. Timely repairs using compatible materials can help maintain the coating system over its service life.
